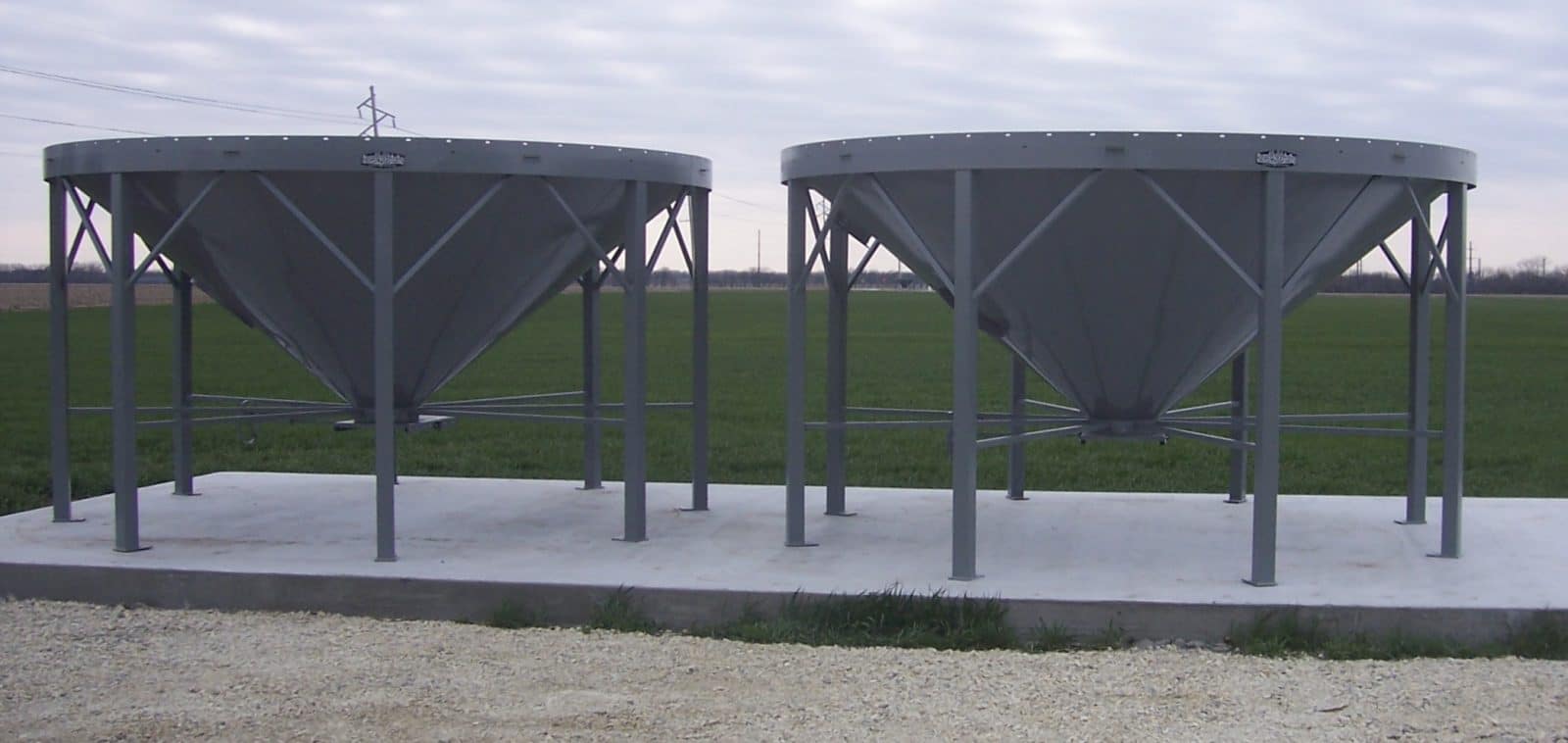

Hopper Bottom Cones

With our Hopper Bottom Cones – No more shoveling grain, no more back pain, no more breathing dust. Add extra bushels to your existing grain bin with quick and easy unloading!

Our Hopper Bottom Cones are available for new or existing grain bins.

  • Bin Cones are painted inside and out.12’, 14’, & 15’ diameter cones are generally built in one piece, but can easily be built in two halves if shipping is an issue
  • 18’-27’ diameter cones are built in two halves
  • Standard hopper slope: 12’ – 45°, 14’& 15’ – 40°, 18’& 21’ – 38°, 24’& 27’ – 35°
    45° degree slope available on all cones
    See chart below for more information about bin cone slopes and added bushel capacity
  • One-piece cones are an option in 18’ & 21’ diameter if shipping is not too far from factory

All Hoppers come standard with heavy duty rack & pinion hatch and manhole entrance with cover. Bin cones are all steel construction with square tubing legs and bracing. Each hopper cone is custom built for the bin that it will go under and will work with any grain bin manufacturer.

Please call today for a free estimate and see what other options and custom sizes are available to save you labor and make your operation more productive.

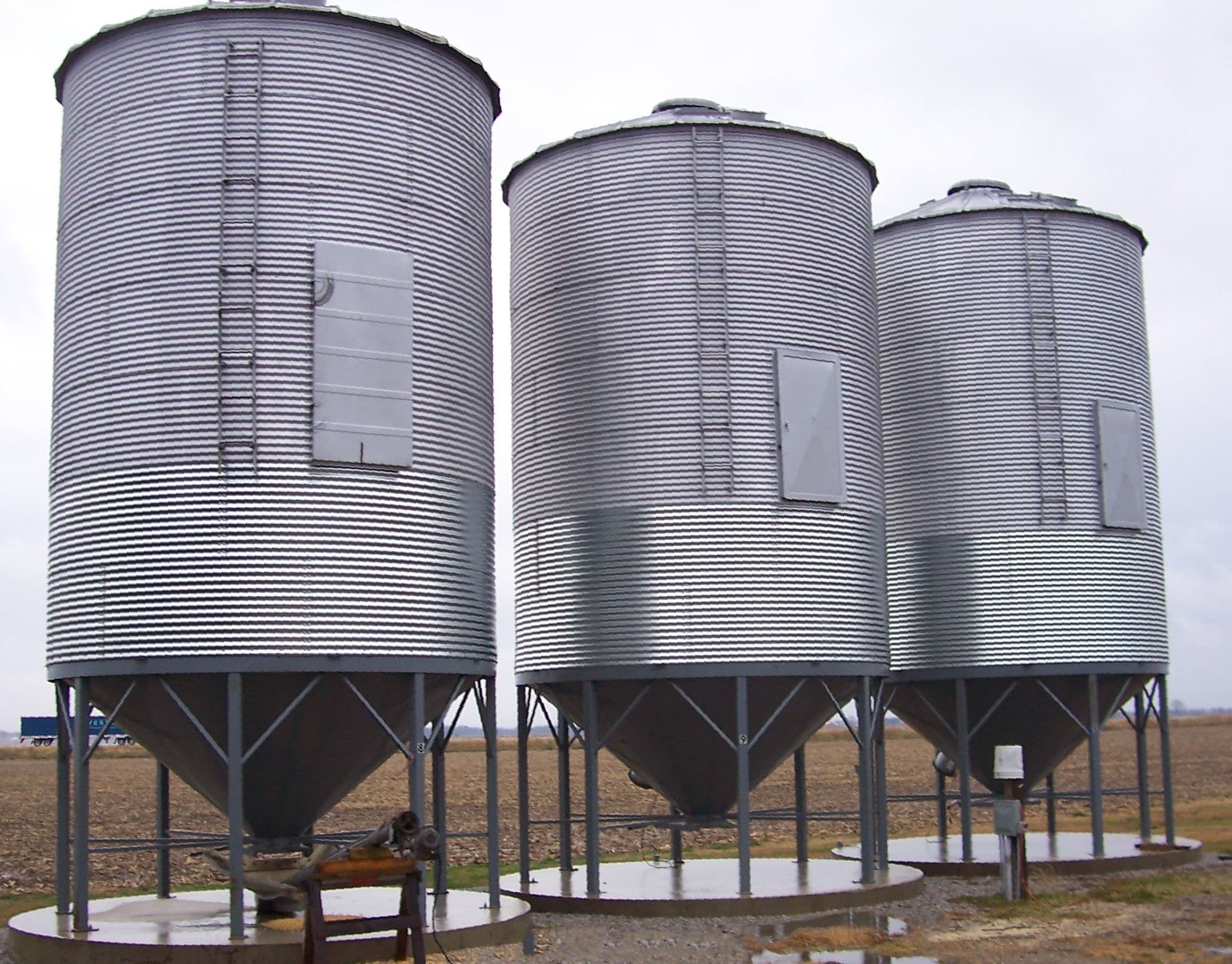

3 grain bins with hopper bottom cones
View Photo Gallery of Hopper Bottom Cones
horizontal aeration

Options Available:

  • Aeration
  • Bolt-on Heavy Duty Steel Auger Boot (6” x 8”)
  • Outside Ladder
  • Ladder Cage
  • Ground Control Lids
  • Bulk Tank Augers
  • Steel Skid for Hopper Cone

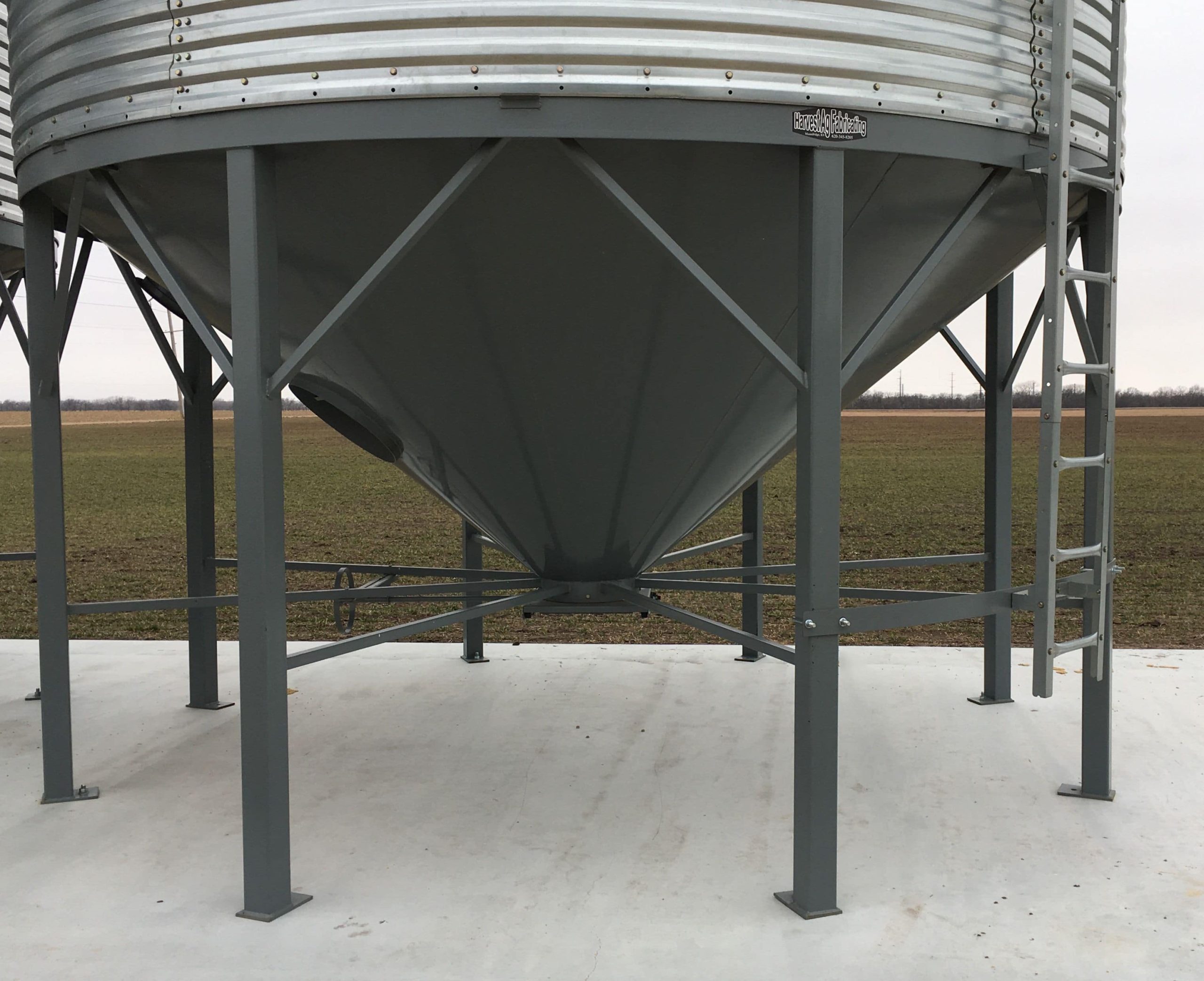

Bin Cone Features

Benefits & Features:

  • No more shoveling
  • No more breathing dust
  • Add extra bushels to your existing grain bin
  • Excellent option to feed your grain dryer continuously
  • Quick and easy unloading – the last bushel is as easy to unload as the first
  • No sweep auger
  • Excellent seed bin – hoppers are easier on grain than sweeps or vacuums
  • Manhole access in hopper for easy entrance, service, & cleaning

Standard Hopper Bottom Cone Specs

Size of Hopper Slope Added Bushels Bin Cone Height
12′ Diameter 45 200 8′
14′ Diameter 40 245 7’10”
14′ Diameter 45 295 8’9″
15′ Diameter 40 300 8’2″
15′ Diameter 45 400 9’11”
18′ Diameter 38 500 9’3″
18′ Diameter 45 600 10’11”
21′ Diameter 38 750 10’2″
21′ Diameter 45 890 12’8″
24′ Diameter 35 1,260 10’9″
24′ Diameter 42 1,443 13’9″
27′ Diameter 35 1,460 12’3″
27′ Diameter 42 2,085 15’6″



For additional information on our hopper bottom cones or trailers, please give us a call at 620-345-8205 or e-mail us.
