Header Transport Trailers

All-Head Trailers: The Trailer That Hauls Them All!

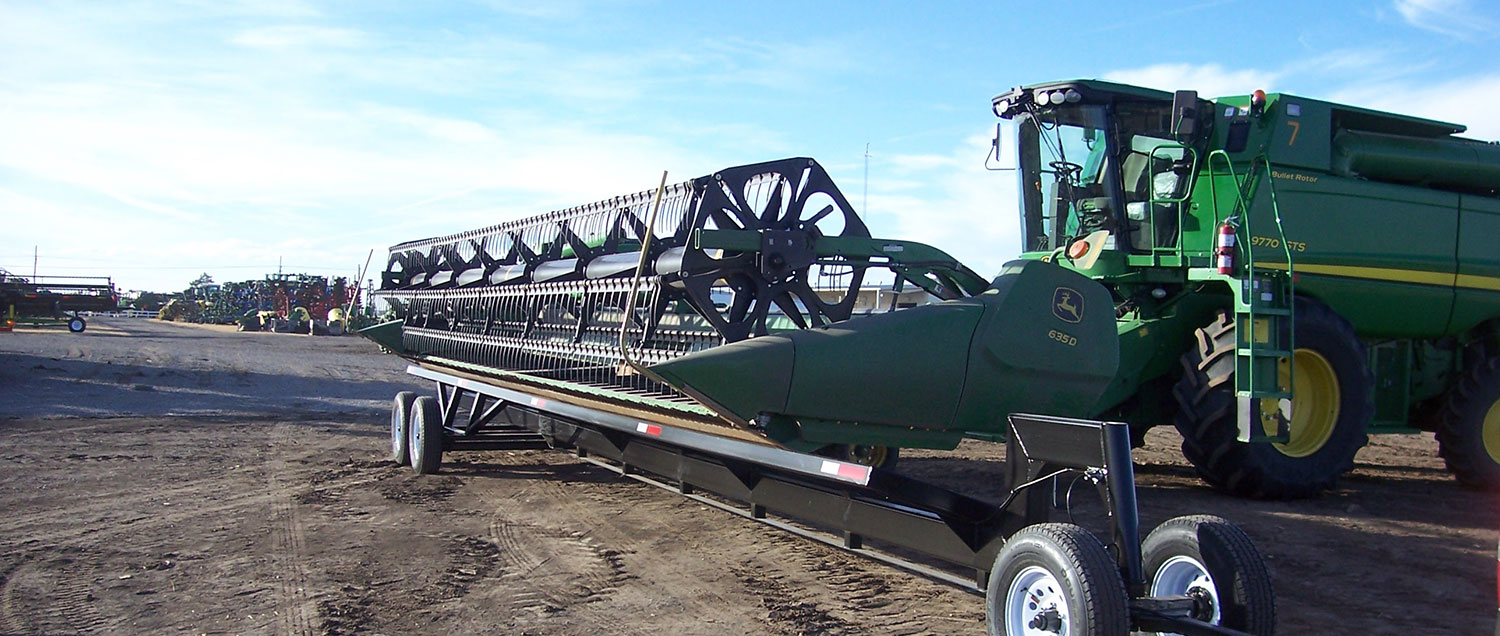

Transport harvest headers safely and efficiently with a Header Transport Trailer from Harvest Ag Fabricating. The extra-long extendable tongue offers flexibility to tow with combine or pickup. The header trailers come standard with lights and torsion axles.  Harvest Ag trailers can be custom built to fit a variety of special applications.

Features of Transport Trailers

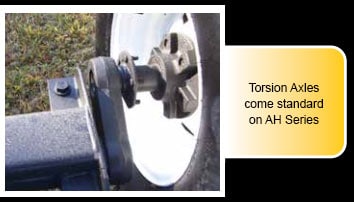

  • Heavy-duty jack and torsion axles for a smooth ride
  • Snap pin on tongue makes hook and length adjustment easy from towing vehicle
  • Safety and protection of header is enhanced with full length bottom support brace
  • Detachable dolly allows direct hookup to towing vehicle

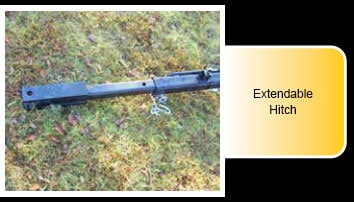

  • Tongue extends for hookup to rear combine axle
  • Snap pin on tongue makes hookup and length adjustment easy from towing vehicle

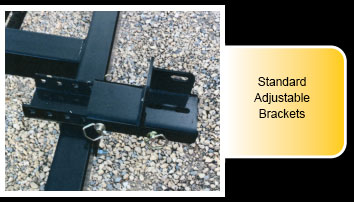

  • Optional adjustable brackets
  • Optional bolt on fenders available on all models

Standard Equipment on Transport Trailers

  • Lights for highway safety
  • Full-length main beam with end cover for sickle bar storage
  • Torsion axle on A-H models with optional brakes
  • Storage door and taillights on all A-H models

Available Sizing on All-Head Trailers

  • 47’ Tandem Axle
  • 42′ Tandem Axle
  • 36’ Tandem Axle
  • 32’ Tandem Axle
  • 32’ Single Axle
  • 25’ Single Axle
Trailer-165809
Trailer-510
Trailer-105659

Harvest AG also makes Swather & Silage Harvester Header Trailers

AH-Series Trailers

All-Head Header Trailers: The Trailer That Hauls Them All!

These AH series trailers are the most universal trailers we build. The All-Head trailer comes standard with a removable dolly and a jack to make the process simple.

When would you remove the dolly?
When backing into a tight shed or any time you want to back into an area.

How do you remove the dolly on your AH Header Trailer?
Just let down the jack and unhook ball from dolly hitch then hook direct to tractor or vehicle and put that trailer right where you want it the first time.

Harvest Ag Fabricating AH Transport trailers are designed to haul rigid draper headers, flex draper headers, flex headers as well as rigid heads. They also work super for most makes and models of corn heads and row heads.

Do you need a header trailer for a stripper header?
We make one that is built precisely to fit Shelbourne Reynolds stripper head, spacing the crossbar members perfectly so they don’t interfere with the stripper header skid plates. We then attach specially made brackets front and back to make it fit so well that you wish you had bought a Harvest Ag trailer long ago. This Trailer also is built for the Mac Don Windrower headers, though we do modify the axle spacing as well as the main frame to get that great fit.

AH-642HD – 42’ All-Head Model Trailer
AH-636 – 36’ All-Head Model Trailer
AH-432 Trailer

AH-647HD – 47’ All-Head Model Trailer

The AH-647HD is our 47′ All-Head model trailer. It comes standard with tandem torsion axles, removable dolly wheels in front, extendable hitch for towing with combine, tail lights, and 16” radial tires.

AH-642HD – 42’ All-Head Model Trailer

The AH-642HD is our 42’ All-Head model trailer. It comes standard with tandem torsion axles, removable dolly wheels in front, extendable hitch for towing with combine, tail lights, and 16” wheels and tires.

AH-636 – 36’ All-Head Model Trailer

The A-H36 is our 36’ All-Head model trailer. It comes standard with tandem torsion axles, removable dolly wheels in front, extendable hitch for towing with combine, tail lights, and 15” wheels and tires.

AH-632 – 32’ All-Head Model Trailer

The A-H-32 is our 32’ All-Head model trailer, which is similar to the AH-636, but comes with single or tandem torsion axle in rear and 15″ radial tires.

AH-425 Trailer

The AH-425 is our trailer for 8-row corn heads, row heads, and flex or straight heads. It comes standard with 15” radial tires, torsion rear axle, and is available in either bumper pull or with dolly.

All AH-Series Options include: clearance lights, front fenders, brakes on all axles, front torsion suspension and 8 lug wheels.

SW-432 Trailer

SW-Series – Swather Head Trailers

The SW Series trailers are designed with a flat platform and notched on one side to accommodate loading and unloading with a self-propelled windrower. Compatible with most John Deere, Massey Ferguson, Hesston, Case IH, New Holland, Challenger, older Mac Don, and other brands of self-propelled Swathers. SW-Series trailers are available in 27’, 32’, 36’ single axle and 36’ & 42’ tandem axle. They come standard with tandem torsion axles, removable dolly wheels in front, extendable hitch, tail lights, and 15” wheels and heavy ply tires.

SW-Series Options include: clearance lights, front fenders, brakes on all axles, front torsion suspension.

View gallery of SW-Series Trailers

CH-425 Trailer

CH-Series Trailers – Chopper Head Trailers

The CH-Series trailer is designed to carry direct cut disc heads for self-propelled forage harvesters. We have several different models that are modified to accommodate different makes and models including Claas, Capello, Zurn, and others. Our CH-Series Chopper Head Trailers come standard with torsion axle, removable front dolly wheels and taillights. We offer a DOT package that comes with torsion front dolly, brakes on all axles, fenders, clearance lights, DOT-compliant rear light bar, and break-away kit. We offer chopper head trailers for 20’ and 25’ width heads.

View gallery of CH-Series Trailers

SB-30

S-B Series

Our S-B series are well-built trailers that work great on standard ridged and flex headers. These S-B trailers come standard with 15” wheels and tires. Both the pitch of the header and the axle placement are adjustable. We offer S-B Trailers as a four-wheel model with removable dolly or a two-wheel bumper pull model. Both are available in 25’ or 30’ lengths.

Options include lights and fenders.

We Specialize in Having the Header Trailer to Fit Your Needs!

For more information, please give us a call at 620-345-8205 or contact us.
